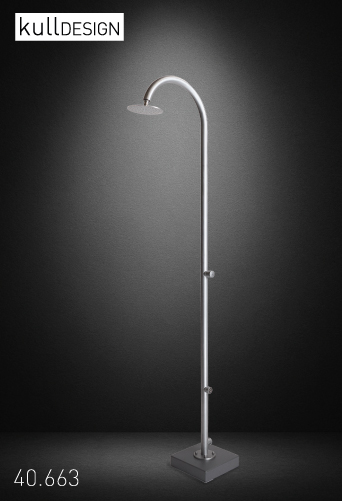

Art. No. 40.663
Dimension: B: 4,2 H: 228,0 T: 48,0 cm weight: 7.50kg
The basic module contains the shower arch, a chrome-plated effervescent plate of 20 cm, a valve for the cold water supply with the appropriate rotary handle, as well as a connection for an additional faucet and the base plate. Since the shower can be connected to the surface or underground, a ground-close connection and a connection set are also included. On delivery, the above-ground connection is provided with a blind plug. Depending on the need, this can be removed according to the sketch to allow the water connection.
If no additional faucet is desired, the connection is provided with a blind plug to allow a later installation.
Please note that no faucet is included. This must be ordered as desired.
In addition, if an underground water supply is desired, we recommend an earth base. Please refer to the installation instructions on the sketch.
On our website you will also find many more effervescent plates in different sizes, shapes and colours.
Further special adjustments are possible on request.
• Shower bow
• Effervescent Ø20cm
• Rotary handles cold
• Connection set
• Base plate
• Effervescent plate of 25cm/40cm
Please note our general operating instructions:
pipe thoroughly before (re-)commissioning with approx. 3-4 litres of water to remove and remove dirt.
water pressure of 6 bar must not be exceeded.
- Completely empty water-carrying elements in the outdoor area before the first frost (blow out with compressed air if necessary) and, if possible, dismantle them.
- rooster not too tightly to turn, but only until it closes completely.
stainless steel fittings regularly (with our cleaning and care product Art.-No. 45.083).
- Do not use sharp cleaning agents in paint surfaces, instead we recommend our cleaning agent (Art. No. 45.083) to avoid possible damage to the fittings.
