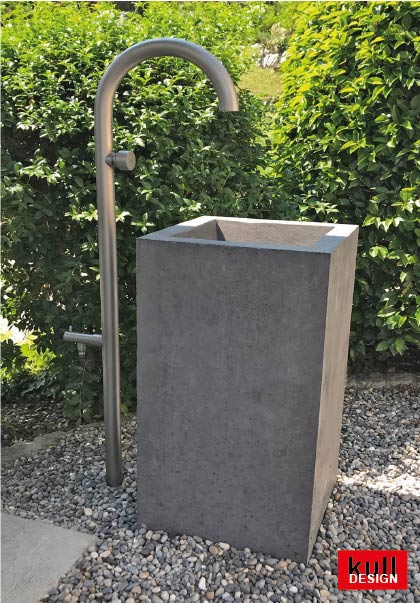

  • 40-644_betontrog.jpg

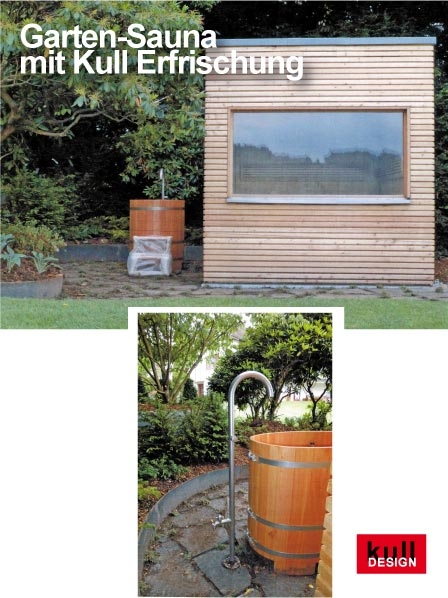

  • 40-644_sauna_bottich.jpg

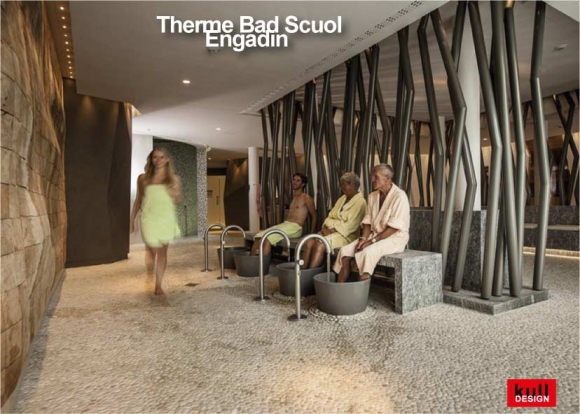

  • 40-644_therme_scuol.jpg

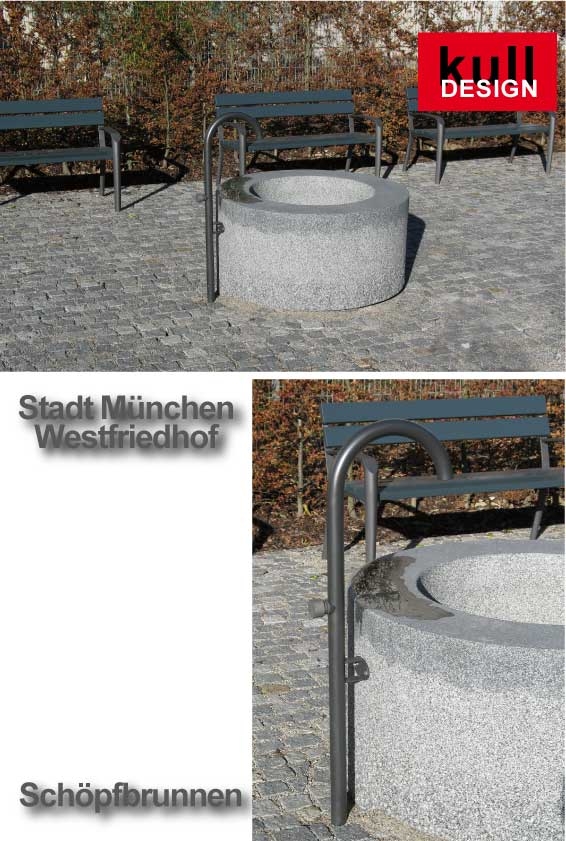

  • 40-644_westfriedhof-muenchen.jpg

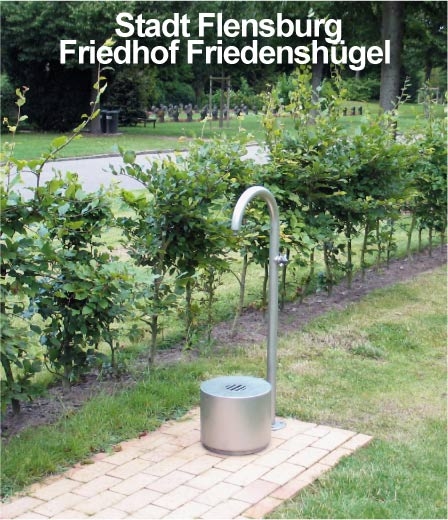

  • 40-644_friedhof_flensburg.jpg

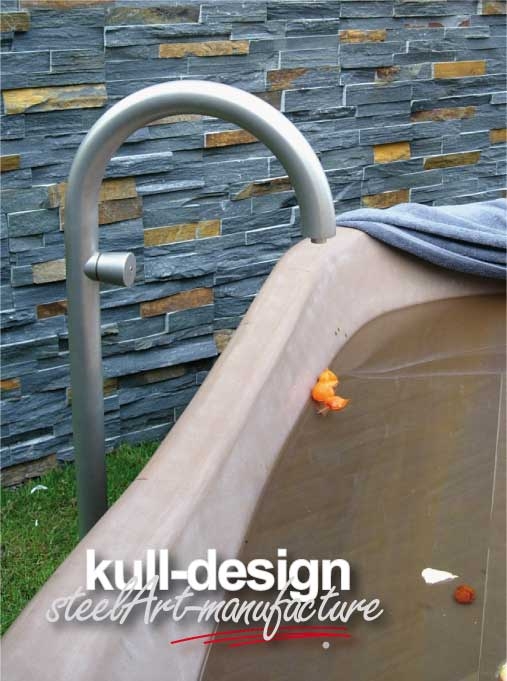

  • 40-644_wellnessbad.jpg

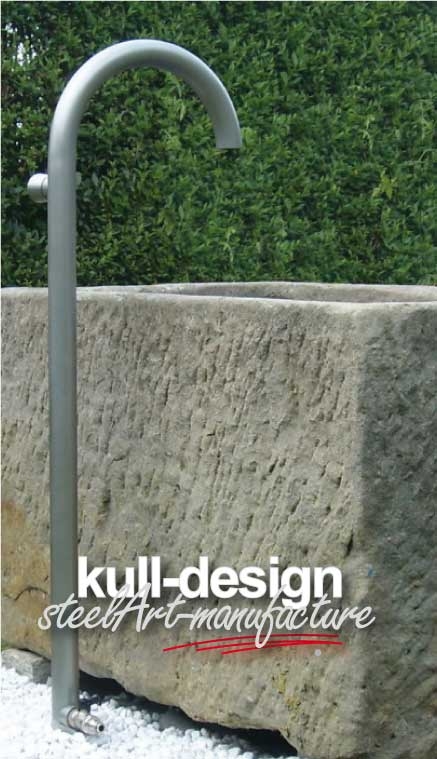

  • 40-644_natursteinbrunnen.jpg

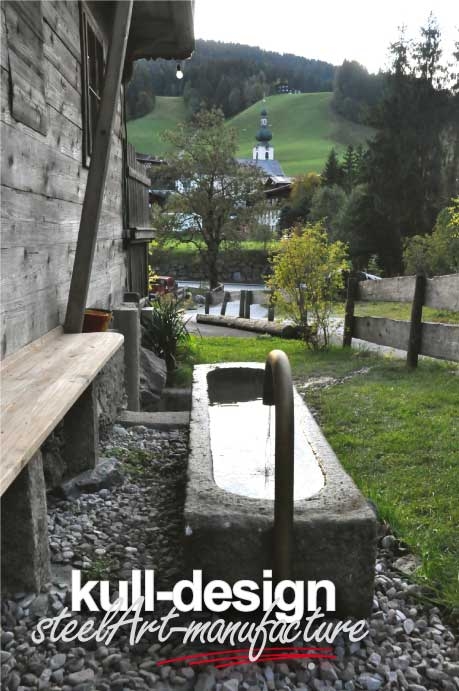

  • 40-644_dorfbrunnen.jpg

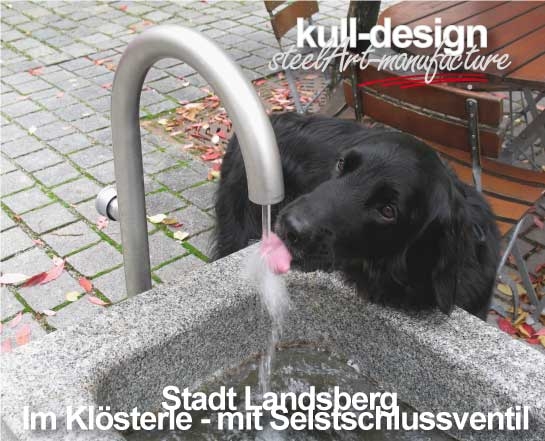

  • 40-644_selbstschlussventil.jpg

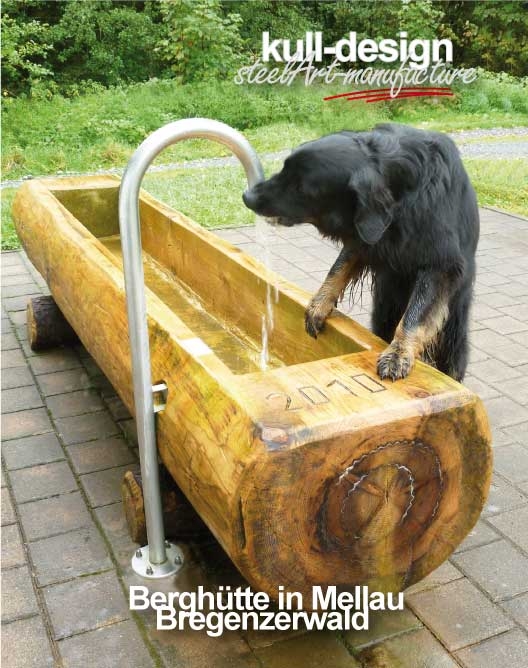

  • 40-644_holzbrunnen.jpg

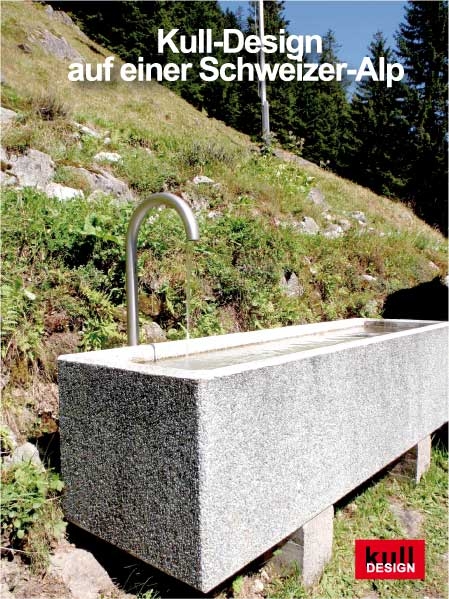

  • 40-644_schweizer_alp.jpg

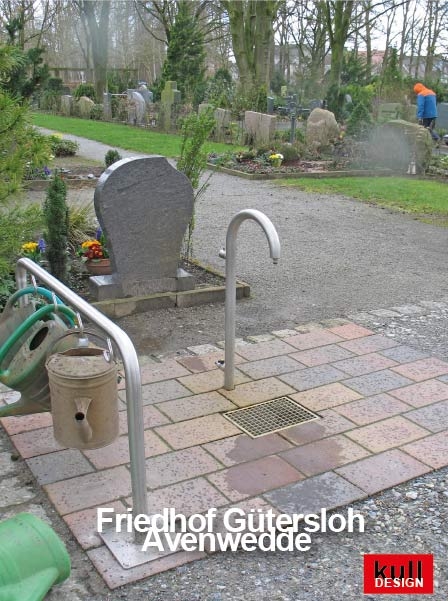

  • 40-644_friedhof_guetersloh.jpg

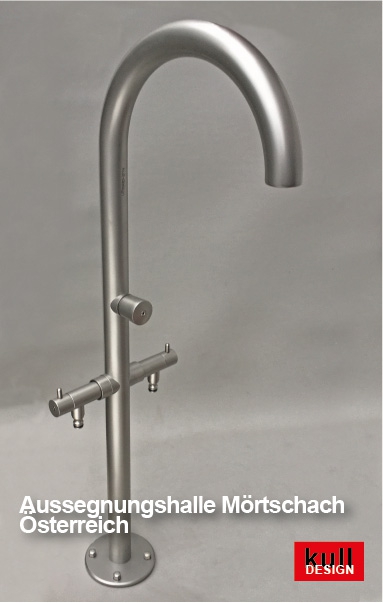

  • 40-644_Aussegnungshalle_Moertschach_oesterreich.jpg
Stainless Steel Garden Water Tap Pillar
40-644_betontrog.jpg 40-644_sauna_bottich.jpg 40-644_therme_scuol.jpg 40-644_westfriedhof-muenchen.jpg 40-644_friedhof_flensburg.jpg 40-644_wellnessbad.jpg 40-644_natursteinbrunnen.jpg 40-644_dorfbrunnen.jpg 40-644_selbstschlussventil.jpg 40-644_holzbrunnen.jpg 40-644_schweizer_alp.jpg 40-644_friedhof_guetersloh.jpg 40-644_Aussegnungshalle_Moertschach_oesterreich.jpg
Tabelle Gewindemaße

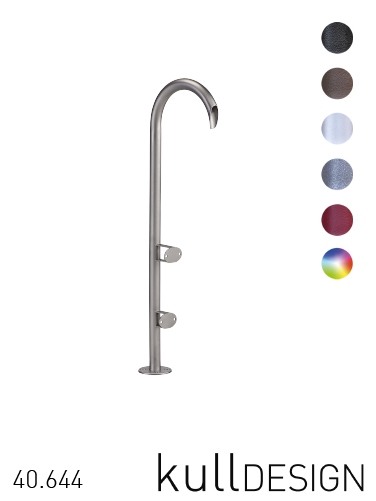

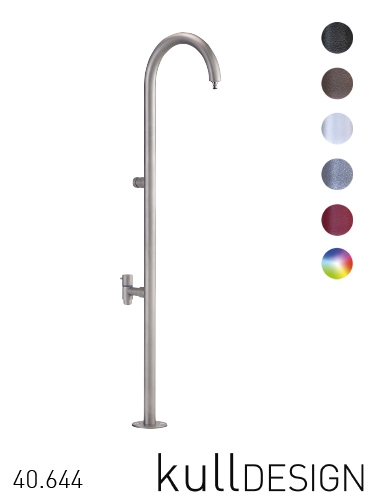

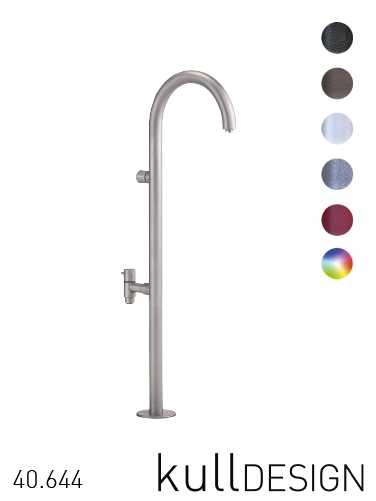

Art. No. 40.644

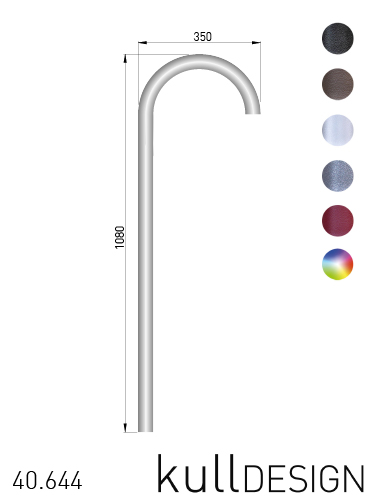

Waterdispenser ø 4.2 x 35 x 108 cm

Dimension: B: 4,2 H: 108,0 T: 35,0 cm    weight: 3.30kg

PriceSum
407,46
(351,26 € net)

Surface

Additional text

Quantity

Water Standpipe ø 42 mm stainless steel 35 x 108 cm.


1. Water tap with shut-off valve
Kull-Design offers valves with different handle options to choose from - a standard concealed 3/4 "external thread is installed at the front of the water outlet - this results in a straight and quiet water jet where a perlator or hose connection can be screwed in at any time - which also means filling of watering cans is advantageous. For the water connection at the bottom, a flexible armored hose with a 3/4 "union nut is installed, which protrudes about 30 mm below the bottom plate, which can be pushed up into the riser pipe during installation (if an additional water tap is attached to the riser at the bottom, it is difficult to push up the Flex hose or a fixed thread is installed!)
2. Select additional faucet
on the riser - specify desired height and orientation, finished.
3. Fountain elbow without shut-off valve
for sources or operation with a circulation pump, the output model is open at the front end of the bow and has a lively quaint water outlet. If attachments such as hose connection or aerator are required at the front of the spout, a threaded connection 45.217 can be installed. For the water connection below a fixed 3/4 "internal thread is installed.
4. Fastening
Wallmount - Floorplate - Ground socket to choose.
Everything is assembled and delivered as a complete part!
Assembly becomes super easy!
