Art. No. 45.073-HT100
Dimension: B: 17,0 H: 50,0 T: 17,0 cm weight: 16.80kg

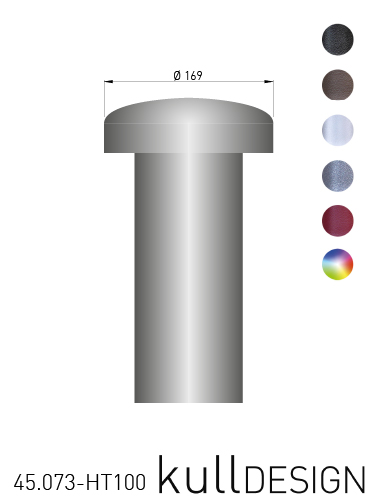

standpipe - overflow - with a diameter of 100 mm fits into a 100-diameter HT-sleeve.
length 50 cm minus insertion depth in KG-muff6 cm results in a water level height of 44 cm.
The mushroom cap dips approx. 5 mm into the water surface and thus prevents leaves etc. from penetrating or clogging into the drain.
Simply Intelligent Stainless steel overflow - standpipe
maintenance-free - the mushroom cap protects against contamination such as leaves, stones and handkerchiefs.
water level 30 cm or as specified.
Please note our general operating instructions:
pipe thoroughly before (re-)commissioning with approx. 3-4 litres of water to remove and remove dirt.
water pressure of 6 bar must not be exceeded.
- Completely empty water-carrying elements in the outdoor area before the first frost (blow out with compressed air if necessary) and, if possible, dismantle them.
- rooster not too tightly to turn, but only until it closes completely.
stainless steel fittings regularly (with our cleaning and care product Art.-No. 45.083).
- Do not use sharp cleaning agents in paint surfaces, instead we recommend our cleaning agent (Art. No. 45.083) to avoid possible damage to the fittings.
