Home Garden sockets Steel Electric Gardenpylon Garden socket incl 3 Built-in sockets
Art. No. 10.361
Dimension: B: 11,5 H: 37,0 T: 11,5 cm weight: 4.90kg

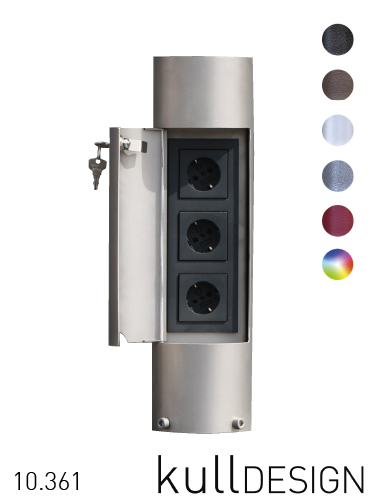

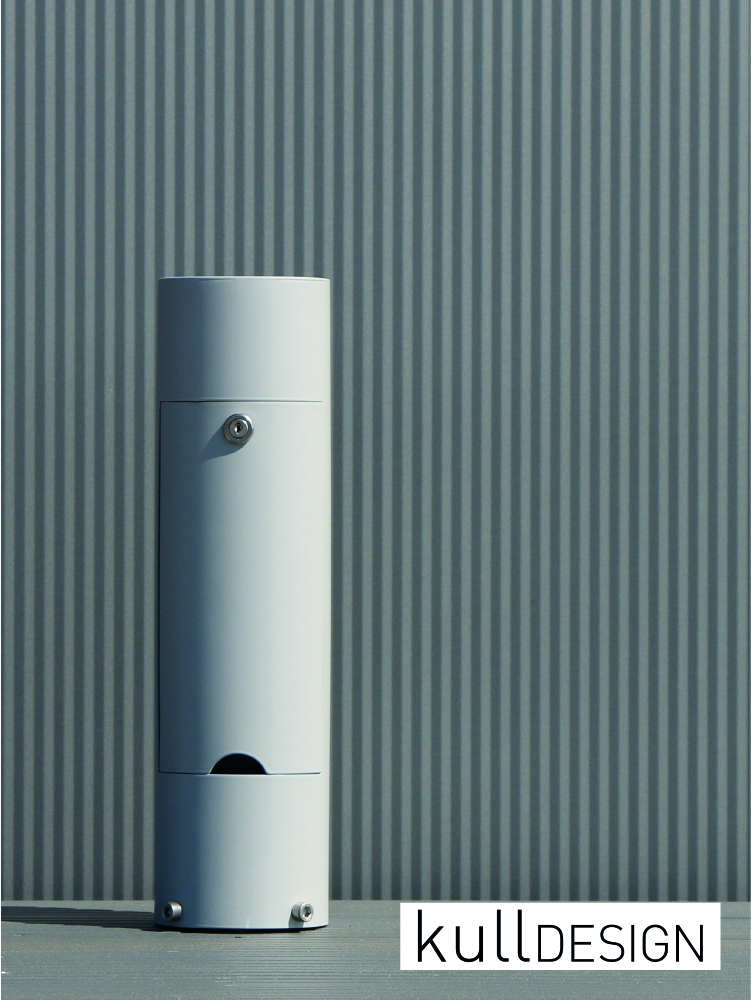

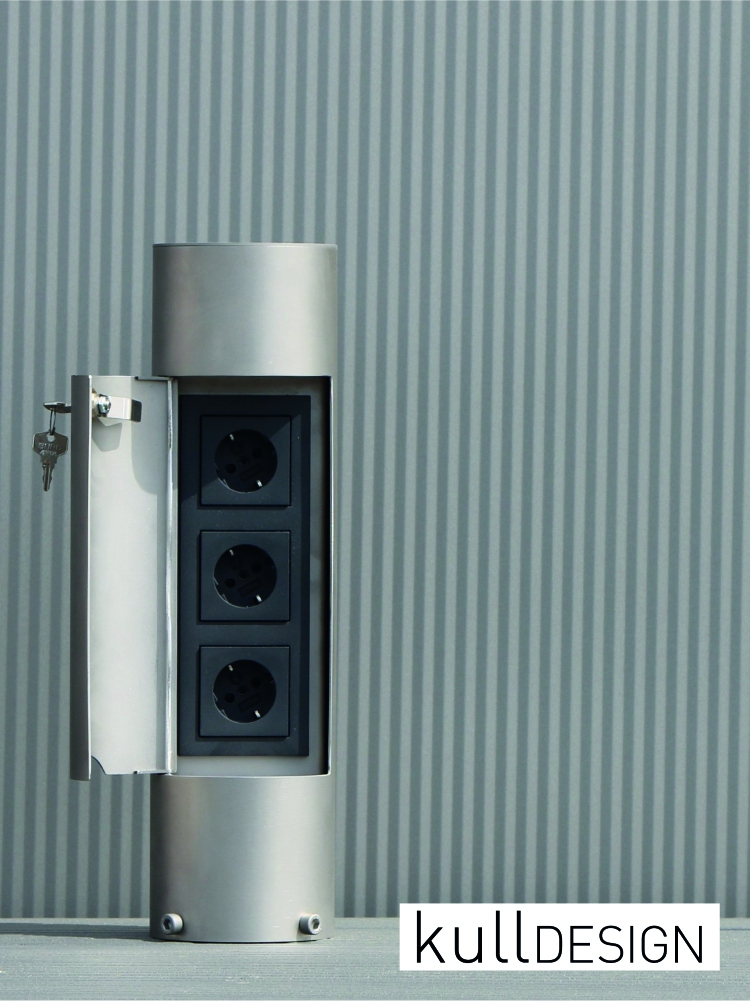

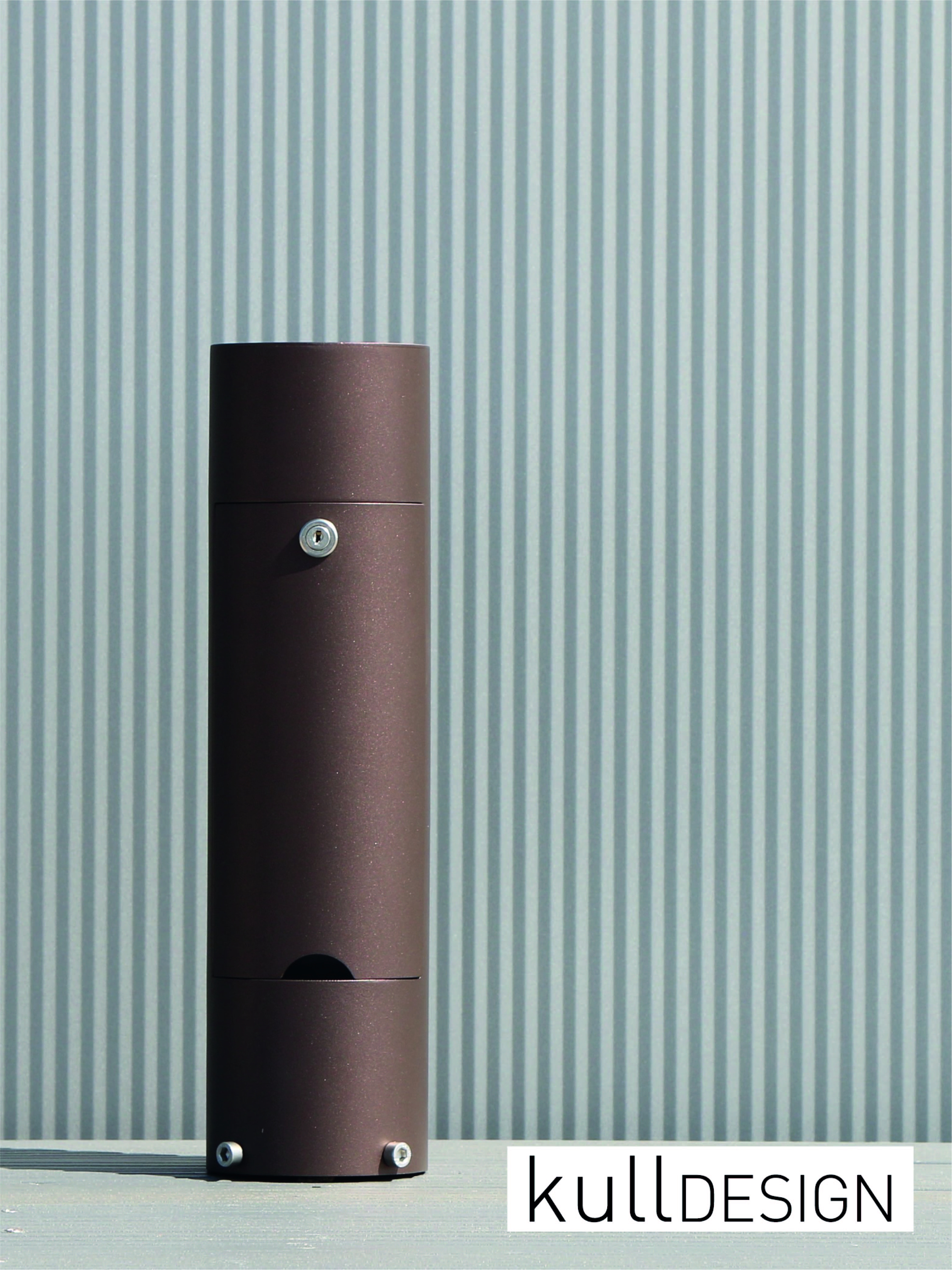

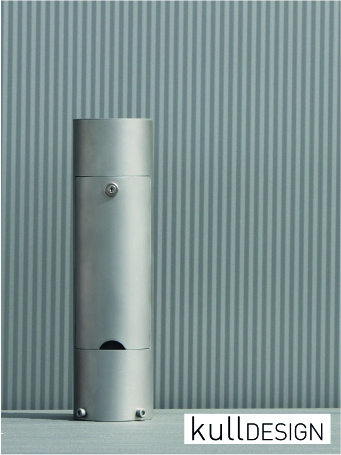

Design garden socket with door
Stainless steel (1.4301) power column matt in unmistakable Kull design.
The puristic energy column power column also garden socket has three Schuko slots with 30° rotated socket insert – this facilitates the connection of devices with angle plugs. In order to lock the door with cables inserted, there is a small recess at the door below. The door lock is optionally equipped with locking latch or cylinder lock with two keys.
Protection class IP44, unwired.
Please note when connecting!
Installation and installation of electrical equipment may only be carried out by an electrician. The socket units are not wired at the time of delivery - this allows an individual switching of the individual units. Rigid strands can be easily plugged into the designated holes on the back of the socket. Connect the earth line to the designated socket unit for this purpose, a long thread is prepared with nut!
POST FOR SOCKETS
The plug modules can be exchanged at any time country-specific e.B. for Switzerland or USA or installed at the time of ordering.
We at Kull Design have placed great emphasis on the built-in "child protection". Here, the socket cover has an increased contact protection - by means of a device in the cover -the so-called "shutter" which closes the pin openings.
3 piece fixing screws in stainless steel-bronze 8 x 60 mm with washers
Please note that although the sockets are splash-proof when the flap is closed, they should not be exposed to persistent heavy wetness. Do not use sharp cleaning agents for paint surfaces and plastic socket flaps. Instead, we recommend our cleaning agent (Art. No. 45.083) to care for the powdered surfaces in order to avoid possible discoloration due to chemical reactions of the materials.
