garden tap  09cm

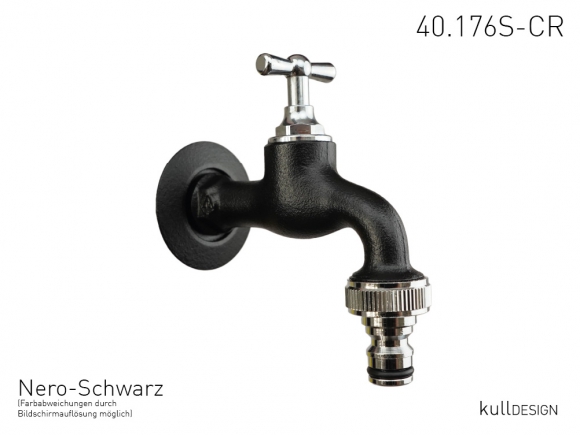

  • 40.176N-CR.jpg
  • 40.176A-CR.jpg

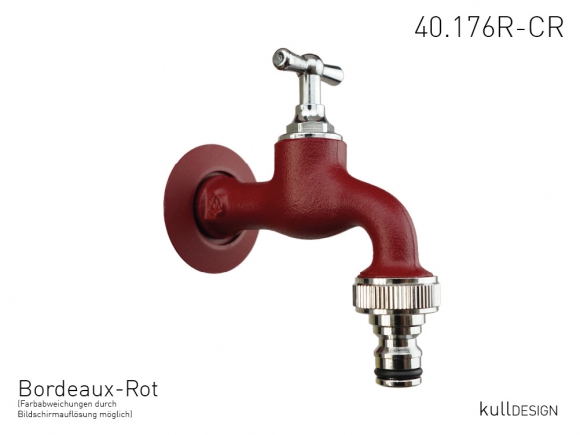

  • 40.176R-CR.jpg
  • 40.176B-CR.jpg
garden tap  09cm
40.176N-CR.jpg 40.176A-CR.jpg 40.176R-CR.jpg 40.176B-CR.jpg
Tabelle Gewindemaße

Art. No. 40.176-CR

1/2 "faucet including coupling piece and rosette

Dimension: B: 2,6 H: 9,0 T: 10,0 cm    weight: 0.20kg

PriceSum
59,90
(50,34 € net)

Surface



Quantity

Faucet 1/2 '' incl. coupling piece and rosette
Coupling piece and knob in chrome


Solid craftsmanship quality for INSIDE and OUTSIDE
A drain valve with DVGW approval from Kull-Design - simple and functional -

In detail:
• Inlet connection thread: 1/2 “external thread
• Water outlet at the front: with thread for the hose connection in 3/4 "
• Valve body: brass CR powder-coated
• Upper part: T-handle toggle with rising spindle and flat seal
• O-ring seal: NBR with KTW / W 270 approvals
• Maximum operating temperature: 90 ° C
• maximum operating pressure: 10 bar
• Weight: 0.2 kg
• Dimensions: projection 10 cm, height 9 cm, width 2.6 cm
Norms:
• Euronorm Drinking Water Ordinance - DVGW approval
• Thread connection ISO228 (corresponds to DIN EN ISO 228 / BS EN ISO 228
